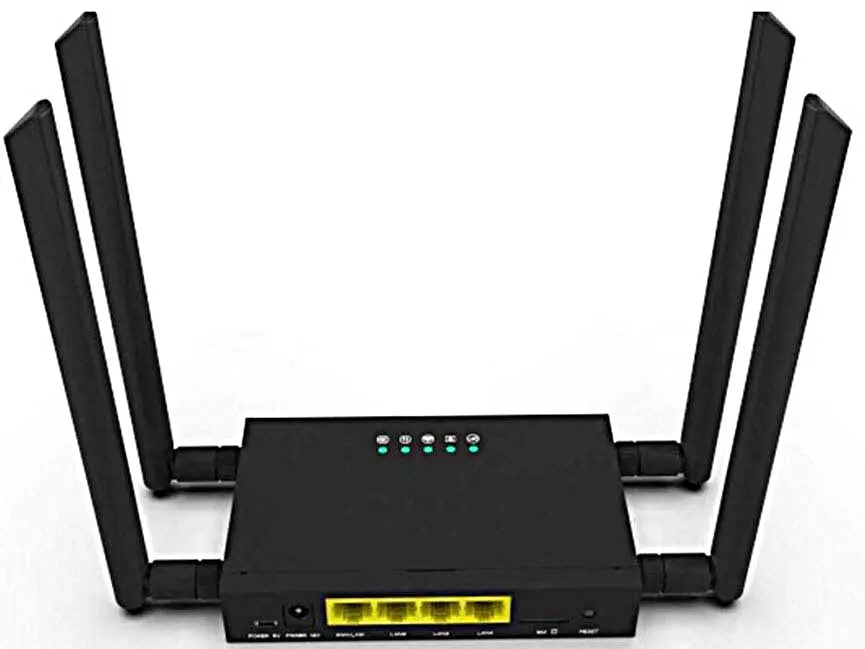

4 G LTE WiFi Wireless Router
4G LTE WiFi Wireless Router, 300Mbps Cat 4 High Speed Industry CPE with SIM Card Slot and 4 external antennas.
EU VERSION: 4G LTE FDD: B1/B3/B7/B8 /B20;
US VERSION: 4G FDD-LTE：B2/B4/B5/B7
Product Highlights:
High performance CPU.
– High speed internet access
– Four antennas, more stable signal
– WiFi access
– Multi network support
– Convenient management
– Internet to WIFI
– 4G to WIFI
– Built in firewall
Available Variants
| Thumbnail | Description | SKU | Stock | Price | Qty | |
|---|---|---|---|---|---|---|
|
Wireless Router,Sim Card:Europe/Asia/South America/Africa,4G FDD-LTE：B1/B3/B7/B8/B20 | WR-EU | $ 0.0 | |||
|
|
Wireless Router,Sim Card: Canada/USA,4G FDD-LTE：B2/B4/B5/B7 | WR-US | $ 0.0 |
Description
Panel mount wireless 4G network router connects your building automation system to the internet on remote sites where there is no internet connection. This router works over your local 4G wireless network; therefore, you’ll need to sign up for an internet plan with your local carrier.
Once you have the plan in place the ISP will provide you with a SIM card that you plug into a small slot on this router providing a wireless internet connection and hotspot.
There are 4 Ethernet ports for wired devices and also a 2.4 GHz WiFi hotspot which provides long range coverage for wireless devices on your LAN. Four antenna’s are included for mounting remotely outside the electrical cabinet. The unit comes with a 110-220VAC wall wart type power supply; as a result, it provides 12VDC power to the router.
There is one model for the North American market which uses LTE on the 4G network, and another model for the rest of the world which uses the GSM network.
North American Model: 4G Network and Frequency Bands
This 4G WiFi router is compatible with the frequency bands of SIM cards from USA/CA/Mexico using the following 4G LTE FDD frequency bands:
- B2(1900Mhz)
- B4(1700Mhz)
- B5(850Mhz)
- B7(2600).
Unlocked sims can work with any unlocked phone or router but you will need one that supports these particular bands, check with your local wireless provide to make sure they can provide a SIM card which matches. (Verizon is known to be incompatible with this router.)
Rest of the World: 4G Network and Frequency Bands
Performance:
The 4G LTE WiFi Wireless Router offers a download speed of up to 150Mbps, upload speed of up to 50Mbps, and a wireless transmission speed of 300Mbps. It features a WiFi Chipset RTL8192 (802.11 b/g/n, 300Mbps) and an LTE Chipset MDM9207 (CAT4, 150Mbps).
This router includes 4 high-gain detachable antennas—2 for receiving WiFi signals and 2 for 4G signals (supporting antenna replacement)—and supports Ethernet modes such as dynamic, PPPOE, and LAN.
Dimensions:

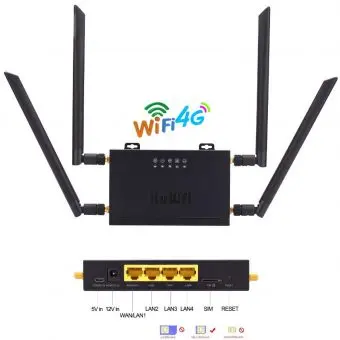

Two Antennas for WIFI Two for Mobile Network
Typical Building Automation Setup
In conclusion, the 4G LTE WiFi Wireless Router is a reliable and high-performance solution for remote connectivity needs. Moreover, with its powerful antennas, multiple Ethernet ports, and wide compatibility with global 4G networks, it ensures seamless internet access even in areas without wired connections. Therefore, it is an ideal choice for building automation systems, businesses, and individuals seeking consistent and efficient wireless communication.
