Humidity and Temp Transmitters
Humidity & Temp transmitters are designed for environmental monitoring and controlling in industrial, commercial and other buildings.
Product Highlights:
- High performance digital sensors and circuits, ensure accurate measurement and temperature compensation
- Good long-term stability and reliability
- 100% field changeable sensors, no re-calibration needed
- Fast response
- Multiple output signals selectable: 4~20mA, 0~5V, or 0-10V
- Supports Both Modbus and Bacnet over RS485 and Wifi, with an etrernet port.
- Modbus communications port: RTU, 9.6k/19.2k/38.4k/57.6k/115.2kBaud
- Display Highly configurable to show user assigned parameters and units,Degc or De gf
- Filter: Sintered Stainless steel, 60um pore size
Available Options:

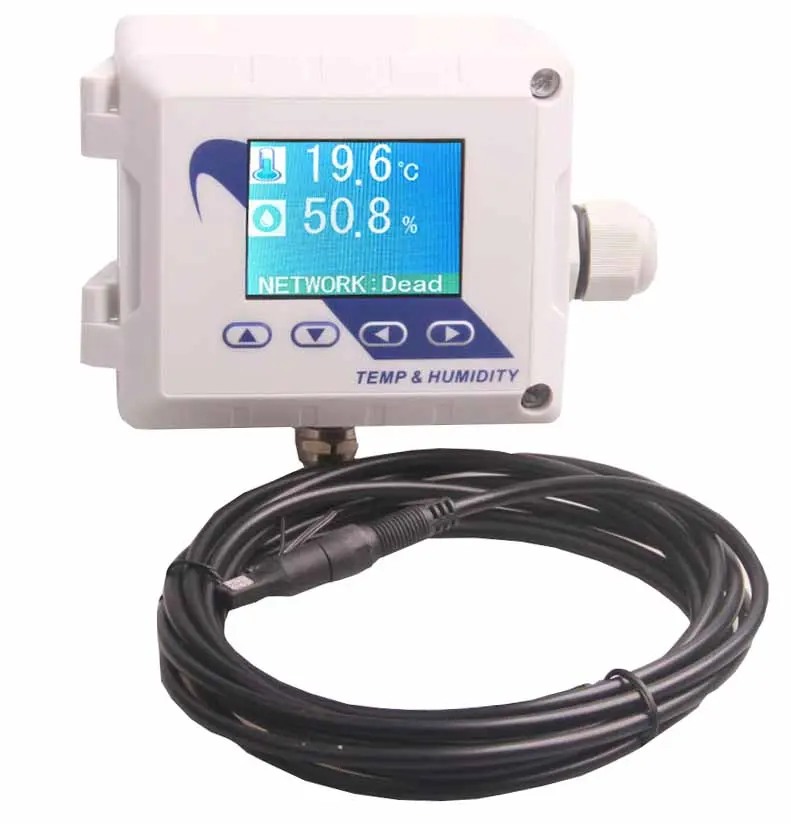

HUM-C1 (2.0 meter cable & remote display)

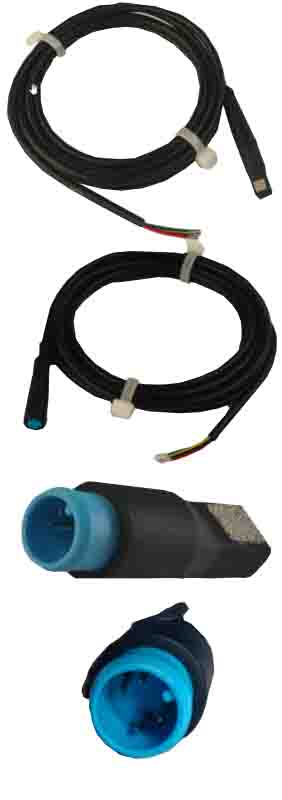

Humidity&Temp transmitter with 2.0 meter cable & remote display, 87mm probe, BACnet, Modbus, RS485, Ethernet.Analog Output 0-5V, 10V, 20mA jumper select. With waterproof connector.

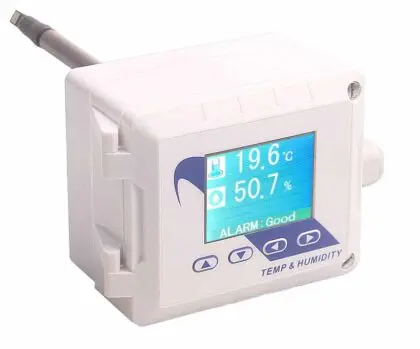

HUM-D1 (node)
Humidity&Temp Transmitter, Duct mount, BACnet , Modbus, RS485, Ethernet,Analog Output:0-5V, 10V, 20mA jumper select, With waterproof connector.

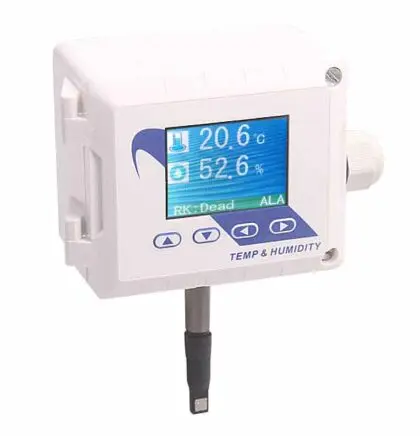

HUM-W1 (wall mount)
Humidity&Temp transmitter, Wall mount, BACnet, Modbus, RS485, Ethernet .Analog Output 0-5V, 10V, 20mA jumper select.With waterproof connector.
Description

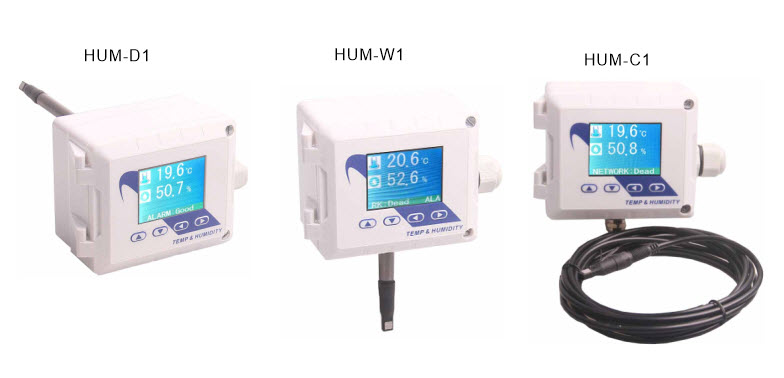

These transmitters can be used for indoor air temperature and humidity monitoring in various industrial plant, clean room, lab, machine room, commercial buildings, airport, and schools. The modbus interface is documented and integrator friendly. They also have transducer outputs for connecting as analog inputs to all popular control systems. Various models are available:Duct Mount,Wall Mount,Room Mount and 2 meter cable.BACnet MS/TP and Modbus RTU protocols over RS485, with an ethernet port.

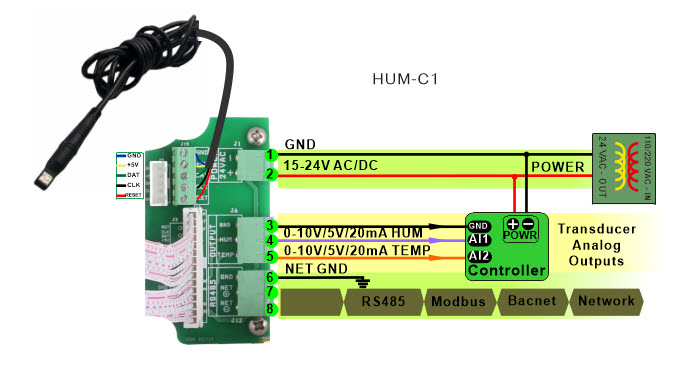

Wiring Diagram

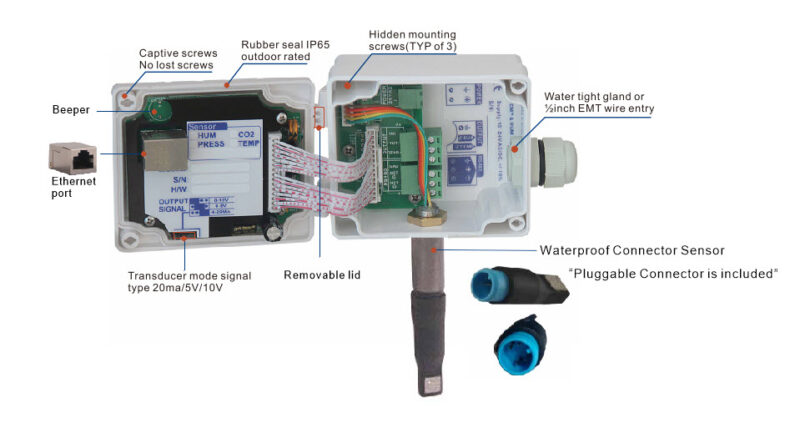

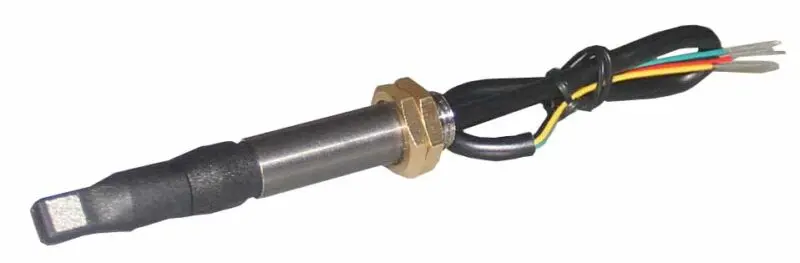

Stucture Graphic

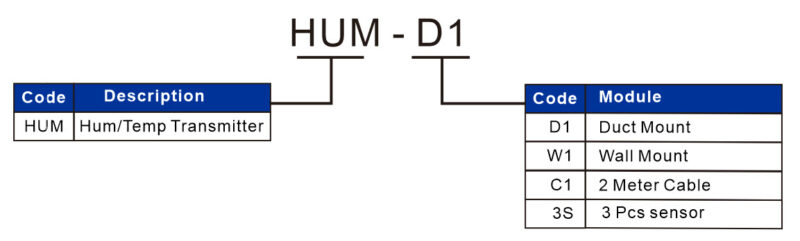

Part Number Scheme

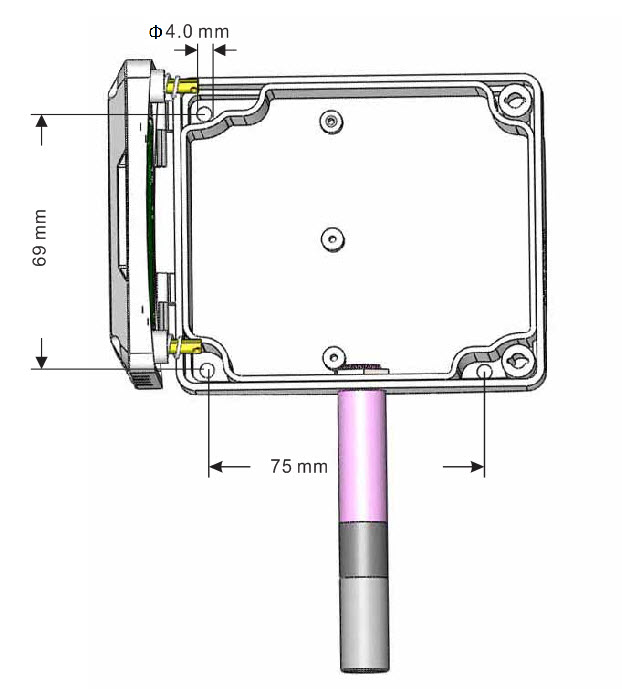

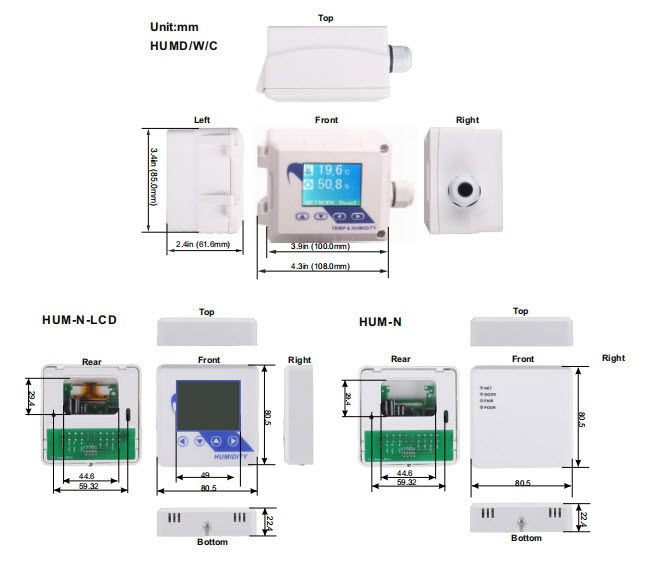

Dimensions
In conclusion, Humidity and Temp Transmitters provide versatile and dependable solutions for precise indoor air monitoring in industrial plants, laboratories, commercial buildings, airports, schools, and other critical environments.Equipped with integrator-friendly transducer outputs, these transmitters easily connect as analog inputs to all popular control systems, ensuring seamless integration and reliable performance.
Furthermore, with Modbus RTU, BACnet MS/TP, and Ethernet support, they ensure flexible communication for automation systems. Additionally, available in multiple models, they provide accurate measurements while simplifying installation and maintenance.
Designed for durability and efficiency, Humidity and Temp Transmitters maintain optimal indoor air quality and ensure safe, comfortable, and controlled environments across various applications.
