Non-contact liquid level sensor

https://bacnet.shop/web/image/product.template/24/image_1920?unique=b85760a

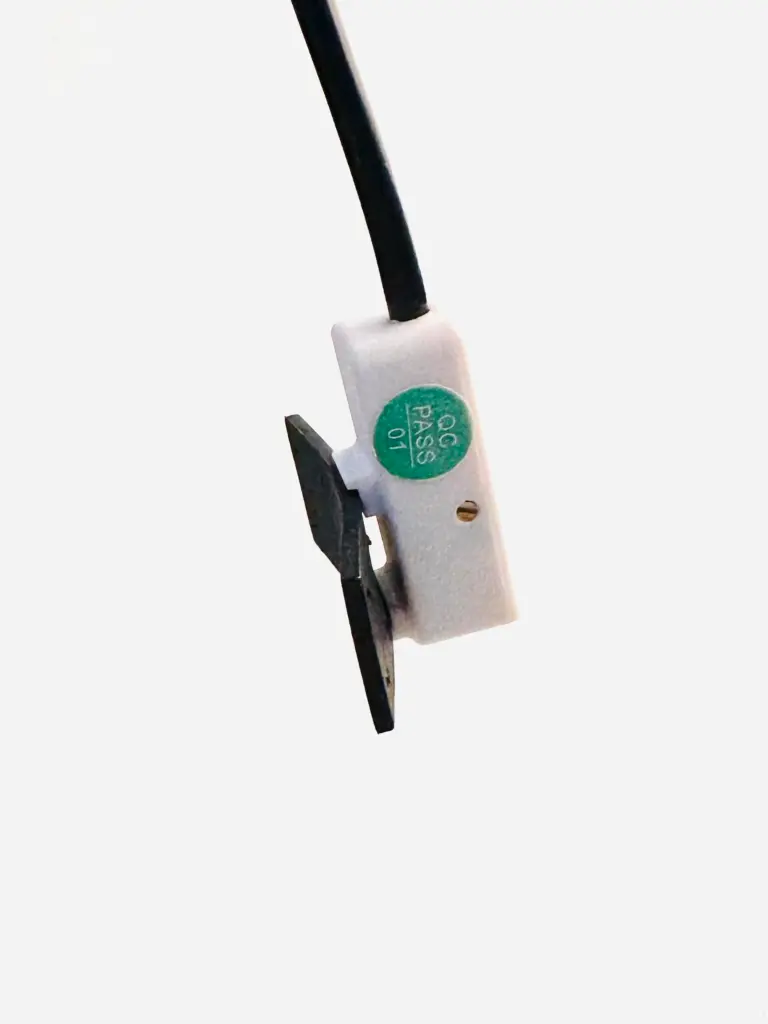

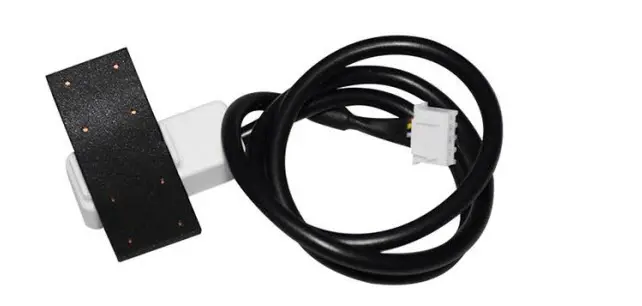

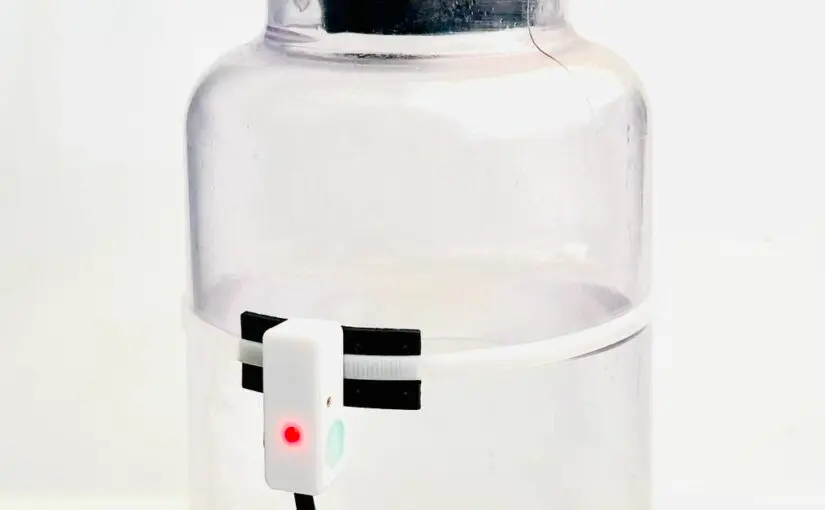

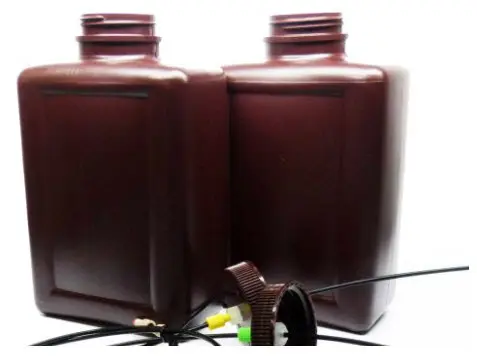

Non-contact fluid level sensor detects fluids within non metallic containers from outside the container without direct contact to the fluids. Idealy suited for lead acid batteries, fuel tanks, water storage tanks and any application where contact with the fluid or penetrations in the tank are not allowed.The sensors work on an inductance principle so they work fine with opaque material such as dark plastic, anything non metallic

Product Highlights:

  • All electronic based circuit, no mechanical parts to fail over time.
  • No tank penetration required, can sense though non metallic containers.
  • Immune from interference by EMI, nearby motors or electronics.
  • Wide power supply tolerant, from 5V to 24VDC.

Available Options:

XKC-Y26-PNP-24

Non-contact fluid level sensor,voltage range : 24V, PNP output interface   ​ ​ ​ ​ ​

XKC-Y26-PNP-12

Non-contact fluid level sensor,voltage range :DC5~ 12V, PNP output interface

XKC-Y26-NPN

Non-contact fluid level sensor,voltage range : DC5~12V, NPN output interface

$ 5.80 5.8 USD $ 5.80

Not Available For Sale

  • Fitting Type

This combination does not exist.

Contact Us
Download Brochure​​
​​
​​

LNT-206 differential pressure transmitter is based on piezo-resistive silicon technology, differential pressure transmitter uses silicon differential pressure sensors with stainless steel isolated diaphragm as measuring elements. Made of 316L stainless steel and designed of rigid and robust construction, PD401 differential pressure transmitter has a feature of that zero point and full range can be adjusted. It is suitable for application in harsh environment and measurement with corrosive pressure media.

Dimension



In conclusion, the Differential Pressure Transmitter LNT-206 is a highly reliable and precise solution, combining accuracy, durability, and advanced technology for demanding industrial applications. This differential pressure transmitter features piezo-resistive silicon technology and a stainless steel isolated diaphragm, ensuring consistent and accurate pressure measurement even in harsh and corrosive environments.

Its robust 316L stainless steel construction adds to its longevity, while the adjustable zero point and full-scale range provide enhanced versatility for different measurement needs.

Therefore, designed to withstand challenging industrial conditions, the differential pressure transmitter LNT-206 delivers dependable performance, making it an ideal choice for efficient, safe, and precise pressure monitoring across a wide range of applications.
