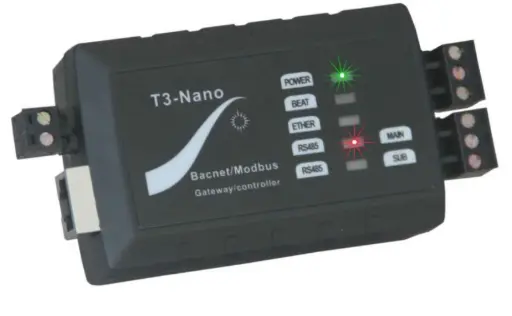

T3-Nano Programmable Router
Programmable controller support Modbus and BACnet protocols, simultaneously, isolated power supply and optp isolated communication.
- T3-Nano Programmable RouterProgrammable controller support Modbus and BACnet protocols,simultaneously,isolated power supply and optp isolated communication.Product Highlights:Sturdy construction, consistently gets good comments from our clients.UL listed ABS enclosure with rubberized texture creates a high end feelConnect over Ethernet,RS485Supports Modbus and Bacnet protocols simultaneously.Starter space source code is avaliableT3000 front end is free and open source: http://tinyurl.com/n7kkqp6Compiled version of the front end is here: https://tinyurl.com/y7uyu9n3
Available Options:

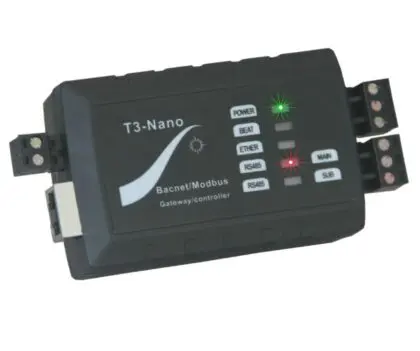

T3-Nano
Programmable controller supporting Modbus and BACnet protocols simultaneously. with Optoisolated RS485, ST CPU

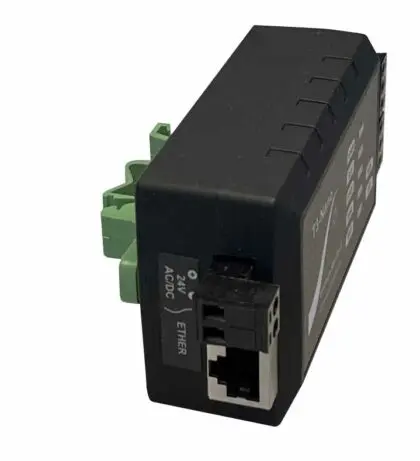

T3-Nano-DIN
Programmable controller supporting Modbus and BACnet protocols. Optoisolated RS485 and 35mm DlN rail Mount with ST CPU
Programmable controller support Modbus and Bacnet protocols, simultaneously, isolated power supply and optp isolated communication.

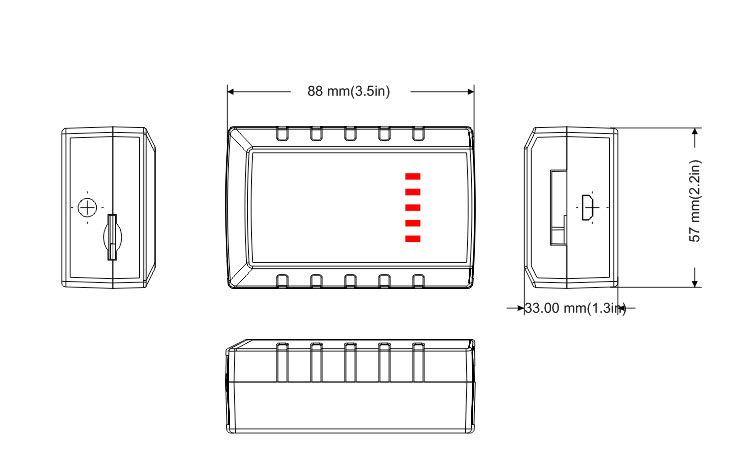

Dimension
These devices support routing over Ethernet, Wifi and RS485 over both the Modbus and Bacnet protocols. There is no limit to the number of points which can be routed through them. The common objects will pass through transparently, we may have to add some features for you if your use case use more complex routing, send us an email to discuss.
Wiring Diagram
