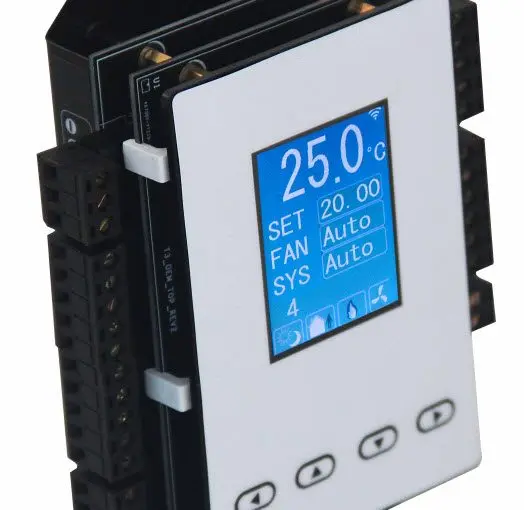

T3-OEM Bacnet programmable controller
The T3 -OEM Bacnet programmable controller is a low cost performer with big system features.
Product Highlights:
• Software configure the I/O ranges with the free T3000 software or by writing to the registers
with your own software
• Universal I/O can be configured for nearly any sensor, no jumper settings required
• Well documented register list for easy integration with other systems.
• 8 universal inputs for external temperature sensors, contacts, etc.
• 5 relay outputs, each rated at 12~24vac, 2 amps
• 4 analog outputs, 0-10V @ 100ma.
• Color LCD display with scroll bar.
• Each I/O as well as the RS485 connections have a separate screw terminal
• Clock with infinite life supercap battery backup.
• Supports Modbus RTU and Bacnet protocols simultaneously.
| material: DIN Rail |
Description
The T3-OEM Bacnet programmable controller is a powerful building control device that can be easily set up to control any typical HVAC application, including coolers, boilers, VAVs, and air system. The front end software supports building layouts, mechanical diagrams and live data from the building. The setup software and the building operator software are free, so there are no license fees and no monthly cloud service fees.
The device can operate as a stand alone device or it can be connected together with many other devices covering many buildings. All communication are carried out using industry standard BACnet and Modbus protocols. With simple hardware and front end, the T3-OEM device stands unique in today’s building control market
Each device has an RS485 port and a choice for WiFi. MODBUS and BACnet work on all these ports.
In conclusion, the T3-OEM Bacnet controllable device stands out as a flexible and affordable solution for modern building control. With simple design, BACnet/Modbus connection, and HVAC support, the T3-OEM device ensures great flexibility and easy expansion.
Used as a single unit or in a larger network, this device ensures reliable performance and easy setup. It offers zero extra costs, making it the ideal choice for smart, efficient, and modern building building management.
